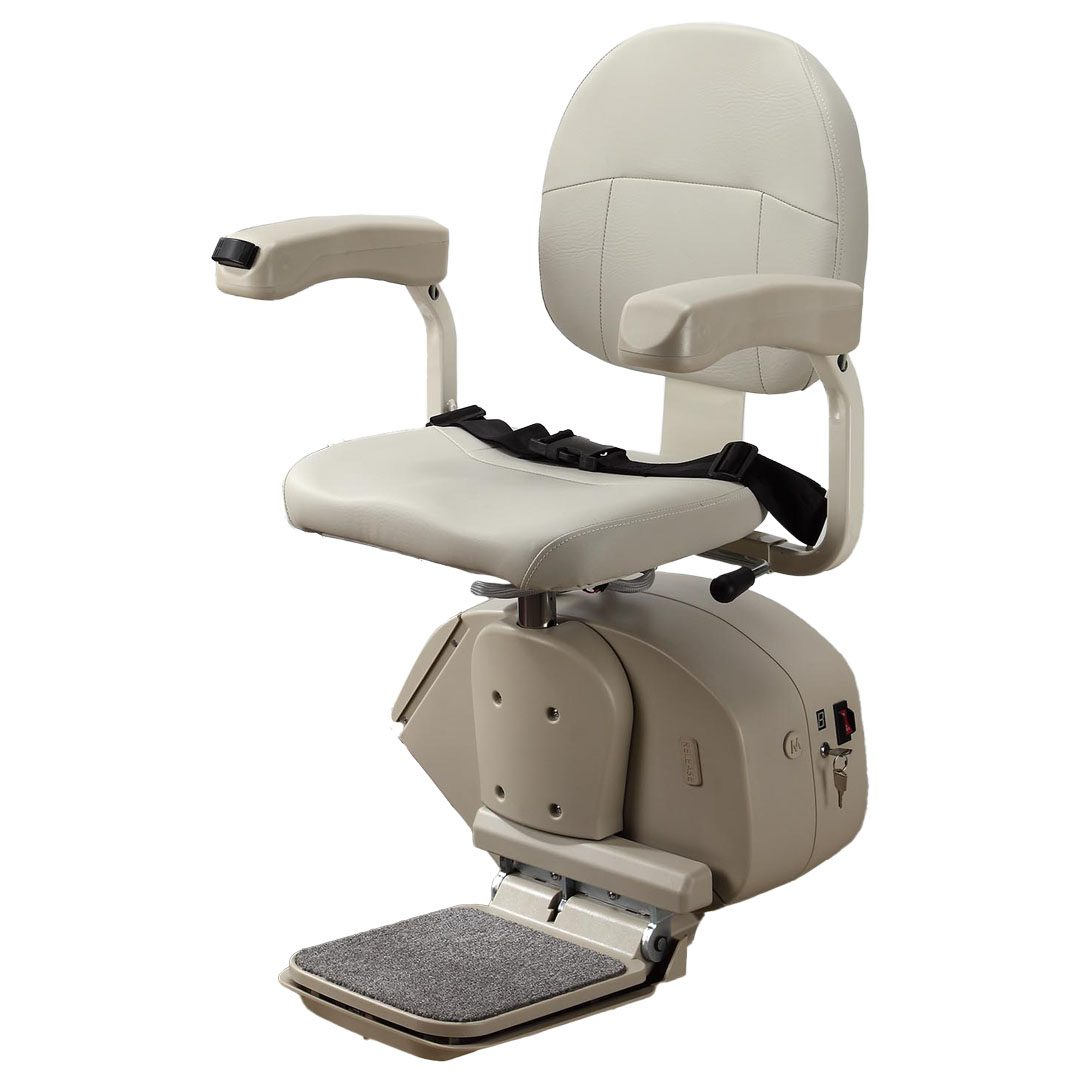

Stair Lift - Merits Aviator E603

Enjoy the perfect blend of strength and style with Merits Aviator! Supporting up to 350 lbs. while maintaining a narrow 24-inch profile. Choose from four colors—cherry, oatmeal, mocha, and cherry—to complement your home. The universal design allows installation on either side, and the smooth, quiet operation with soft start/stop technology ensures comfort. With high-performance hydraulic suspension, this chair offers superior support and reliability.

Standard Indoor track with up to 15ft 9" of full track: $5,200*

Standard Outdoor track with up to 15ft 9" of full track: $6,500*

Automatic hinged Indoor track option with 20ft 6" of full track: $6,450*

Automatic hinged Indoor track option with 12ft 7"of half track: $5,800*

*All systems installed by Union contractors independently licensed and insured for elevators and lifts. Assumes stairway meets building codes, and dedicated 110v power outlet accessible within 8ft of top or bottom of stairway. Any necessary modifications to stairway, or relocation of electrical outlets, will be the responsibility of the homeowner.

Product Link: Merits Aviator E603

Weight capacity: 350 lbs (300 lbs with hinged option)

Motor: 950W, 24VDC

Speed: 20-fpm~ 6M/min

Drive Method: Rack & Pinion

Incline Limits: °25-55

Charger: 115~230V AC, 50/60Hz

Battery: 24VDC re-chargeable batteries

Internal Arm Rest: Width 16" - 20"

Seat to Footplate Height: 17”-20"

Remote Controls: Two (2) infrared remotes included

Compliance Standards: ASME A18.1/A17.5

Safety Sensors: Five (5) safety sensors as standard

Safety Devices: Overtravel prevention, motor brake, key switch, retractable seat belt, armrest and swivel seat safety switches, OSG

Warranty: 5 years on the motor gear box 2 years on components
